Pöttinger JUMBO Combiline
2 in 1 loader wagon technology – The silage/harvesting combination
An engineering innovation has been added to the comprehensive range of Pöttinger loader wagons: The Jumbo Combiline, which can be implemented as both a silage wagon and a harvest transport wagon. Maximum versatility and increased machine utilization are guaranteed as a result.
| Innovation combined with proven technology The Pöttinger Jumbo Combiline means business: the combination wagon structure has been completely redeveloped and features full-length heavy duty pillars placed closely together, a rugged edge bar around the top (120 x 80 x 4 mm) and a 100% bolted frame (300 x 100 x 50 x 6 mm) for the highest possible stability. The 3-position flap at the front is hydraulically actuated so you can change modes in seconds: |

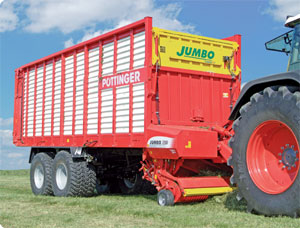

 JUMBO Combiline - The perfect silage/harvesting combination |
- In loader wagon mode the wide forage compression flap regulates automatic loading.
- In harvester mode the front section is raised with the forage compression flap lowered inside to make full use of loading chamber.
- With the front section folded forwards you can drive in under the harvester auger and still have a good view into the loading chamber.
The new, solid tailgate goes right up to the top where it is hinged on a lever system. The D version of the wagon is equipped with two intermeshing beaters as standard - a third beater is also available.
 6 scraper floor chains |
The scraper floor has been upgraded for the Jumbo Combiline too: six scraper floor chains are driven by two transmissions on the wagon centreline. Two hydraulic motors with an integrated 2-speed gearbox deliver maximum power and an unloading speed of up to 13.9 m/min. |
New Jumbo chopping system
The Jumbo Combiline uses the new chopping system. No tools are needed to replace the knives: they are disengaged automatically by a central release mechanism.
| The entire knife bank pivots out easily and smoothly alongside the wagon using the proven Easy Move system. A wiper system is also available to clean the knives automatically each time the knife bank is pivoted. |  Easy Move system |
 Optimized shape of knives for a long service life |
In addition, the shape of the knives has been optimized: a wide corrugated cutting edge ensures excellent cutting performance and a long service life. New wipers have been fitted to the pickup to give the tines greater clearance when conveying the crop. |
Latest chassis technology for Jumbo Combiline
Customers can choose between two types of chassis: the hydro-pneumatic leaf spring tandem axle with levelling valve or the tandem bogie chassis.
| Both types of chassis offer the best level of safety at high transport speeds and are especially designed for operating loads of 30,000 kg. Experience in the field has demonstrated that this wagon needs to be able to withstand stress levels of this magnitude. Moreover, both types of chassis can be fitted with a steering linkage (centre cone steering) or a trailed axle. |
 Hydro-pneumatic leaf spring tandem axle |
Harvest success
The Jumbo Combiline gives you a clear competitive advantage for long-term success. You too can place your trust in Pöttinger's competence as the world's leading manufacturer of self-loading wagons.
Created: 05.03.2007
